Power
12-24VDC / 110-240VAC
Installation
Inside the hull
Lumens
20,000
Powerful Illumination

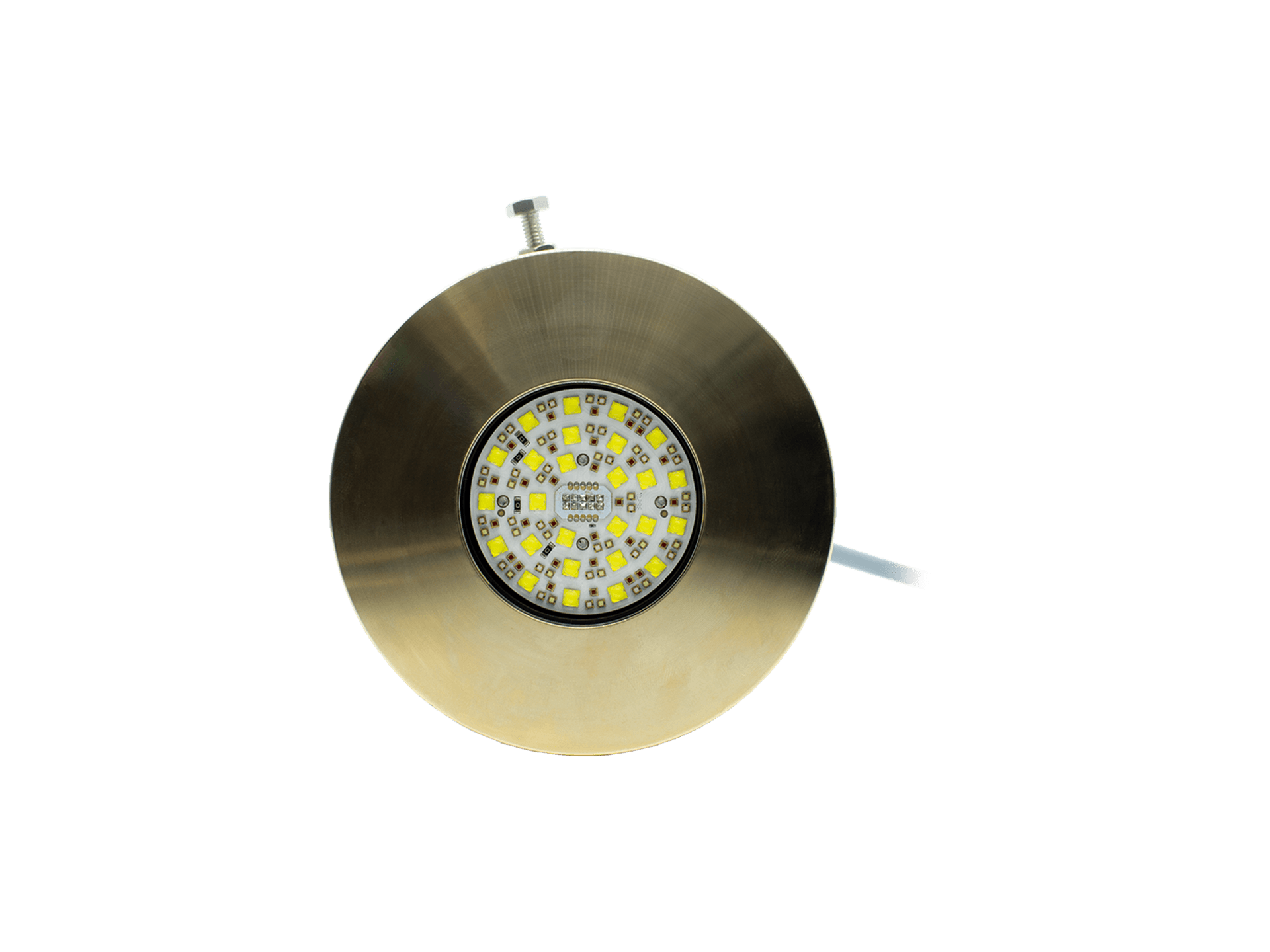

The Retro LED is available with blue or white LED on 12/24 VDC power and 10,000 lumens, or with white LED on 24 VDC power only and 14,000 lumens. An AC version is also available with single colours and a maximum of 20,000 lumens or with DMX RGBW.
Designed for Compatibility
Installation requires no modification to the original hole cutout making retrofitting easy and efficient. The LED upgrade can totally transform an existing underwater lighting setup. For RGBW models, DMX cables will need to be installed.
Maintenance
Inside the hull
Control option
White/Blue DALI or On/Off
RGBW colour change DMX
Driver
DC Integral
AC External
Power
12-24VDC
110-240VAC
Installation
Inside the hull
Lens & test
N/A
Hull material
N/A
Boat size
N/A
Lumens
White or Blue 20,000 lumens
RGBW All colours on @ 20,000 lumens
Kelvin
6,500K
Beam angle
Up to 110 degrees
Colour: Blue, White and RGBW
Operating Voltage: 12-24 VDC / 110-240 VAC
Current Amp draw: RGBW/ White/Blue @ 1.4-0.7 Amps
Output Voltage: White/Blue 55 VDC @ 2.8 Amps / RGBW 96 VDC @ 0.7 Amps 4 channel
Lumens: 10,000 (12/24 VDC, Blue/White), 14,000 (24 VDC, White), 20,000 (AC, Single Colour)
Typical LED Life: 40,000 hours
Lens: Borosilicate glass
Driver Watts: HP3@150W / RGBW@144 Watts
Beam Angle: 100-110 Degrees
EMF Earth Leakage: 0.27mA/19.5mV
